Altec AIR has created these Complete Compressed Air Filter Kits to take the guesswork out of which Filters you need to protect your specific Air Dryer, as well as any downstream processes, from contaminants found in the compressed air supply. These Kits are matched to your Refrigerated and Desiccant Air Dryers in both Flow, Performance & Connection Size ensuring their protection matches the requirements of the incoming compressed air as well as the resulting outgoing Clean, Dry Air.

These Kits come with Filter Elements installed and all of the hardware necessary for joining Filters together.

Just find the Filter Kit Part Number that matches your Air Dryer and necessary level of protection. It’s just that Simple!

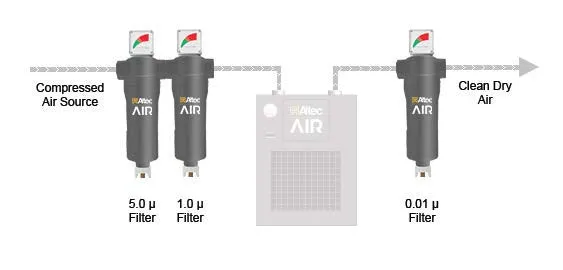

KITS FOR REFRIGERATED AIR DRYERS - (2) PRE-FILTER & (1) AFTER-FILTER

• Kits Include:
(1) X5 Grade - 5 micron Coalescing Pre-Filter
(1) X1 Grade - 1 micron Coalescing Pre-Filter
(1) XA Grade - 0.01 micron Coalescing After-Filter
• Connection Sizes ranging from 1/2” to 3” NPT and 4” Flanged
• Differential Pressure Indicators -
Pop-up Indicators on AR21-0020 & AR21-0025
Gauge Indicators on AR21-0040 thru AR21-2000
• Automatic Float Drains
