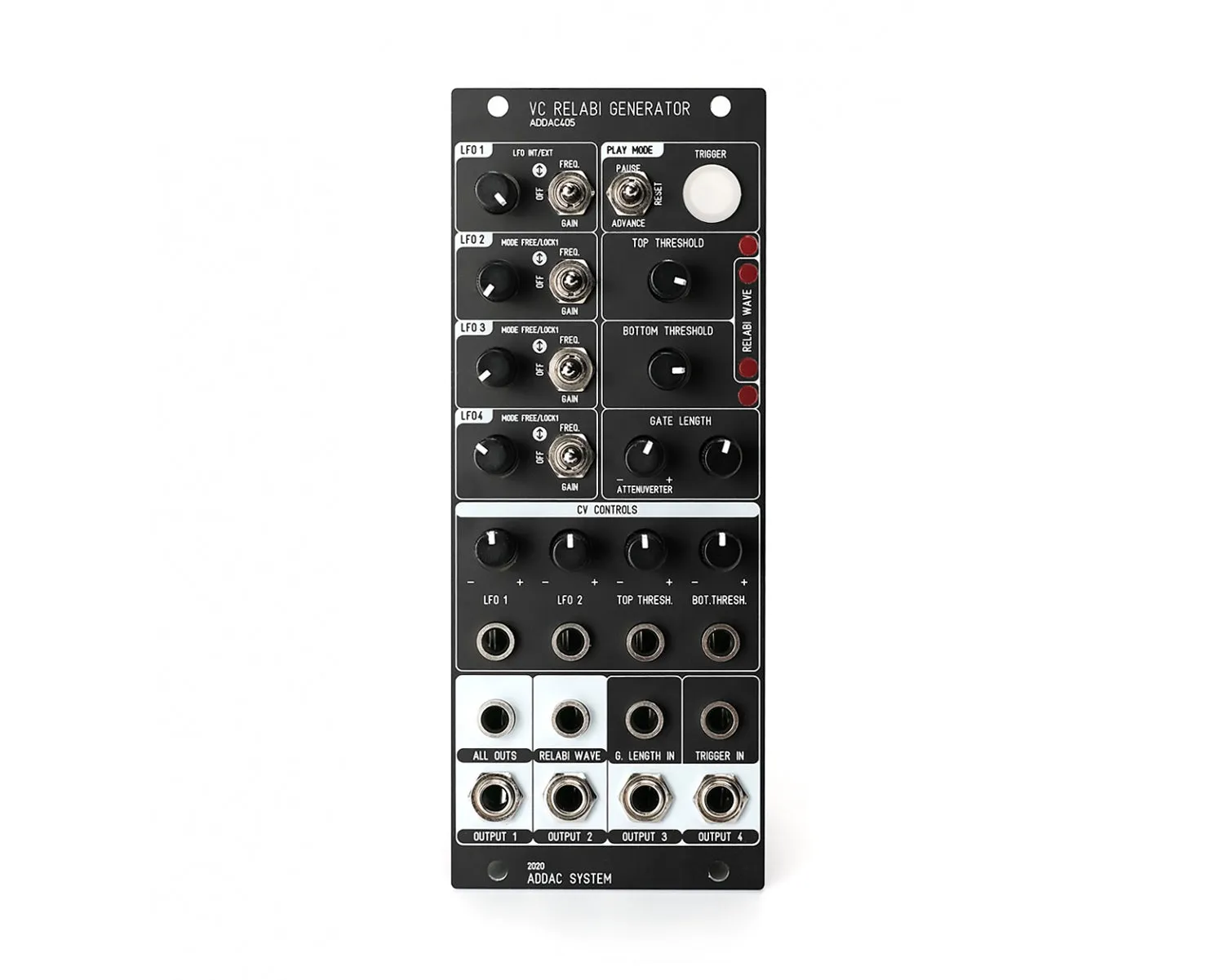

The 405 Relabi Generator is a 10HP complex modulation source that uses a novel approach to signal generation. The 405 functions as a CV and gate/trigger generator. Four sine wave LFOs feature a switch that selects between frequency, gain, and off, muting the LFO.
LFOs 1 and 2 feature CV inputs, and LFOs 2, 3, and 4 feature the ability to sync to LFO 1. These four LFOs are combined to create a Relabi waveform, a /-5V modulation source.

• Voltage-controlled Relabi generator
• LFOs feature gain and frequency controls
• Four sine wave LFOs combine to create a Relabi wave
• Four gate/trigger outputs defined by the upper and lower bounds of the Relabi waveform
• Three play modes defined by the trigger input
• Relabi waveform is a bipolar modulations source
• CV over LFO 1 and 2
• All trigger output
• Gate length with CV control

Video:

Product Specs

• Item Number: 20247
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Portugal
• MPN: ADDAC405
• Modular Grid: Eurorack
• Dimensions*: 10 HP 40 mm deep
• Power*: 100 mA 12V 40 mA -12V 0 mA 5V

* User contributed details
