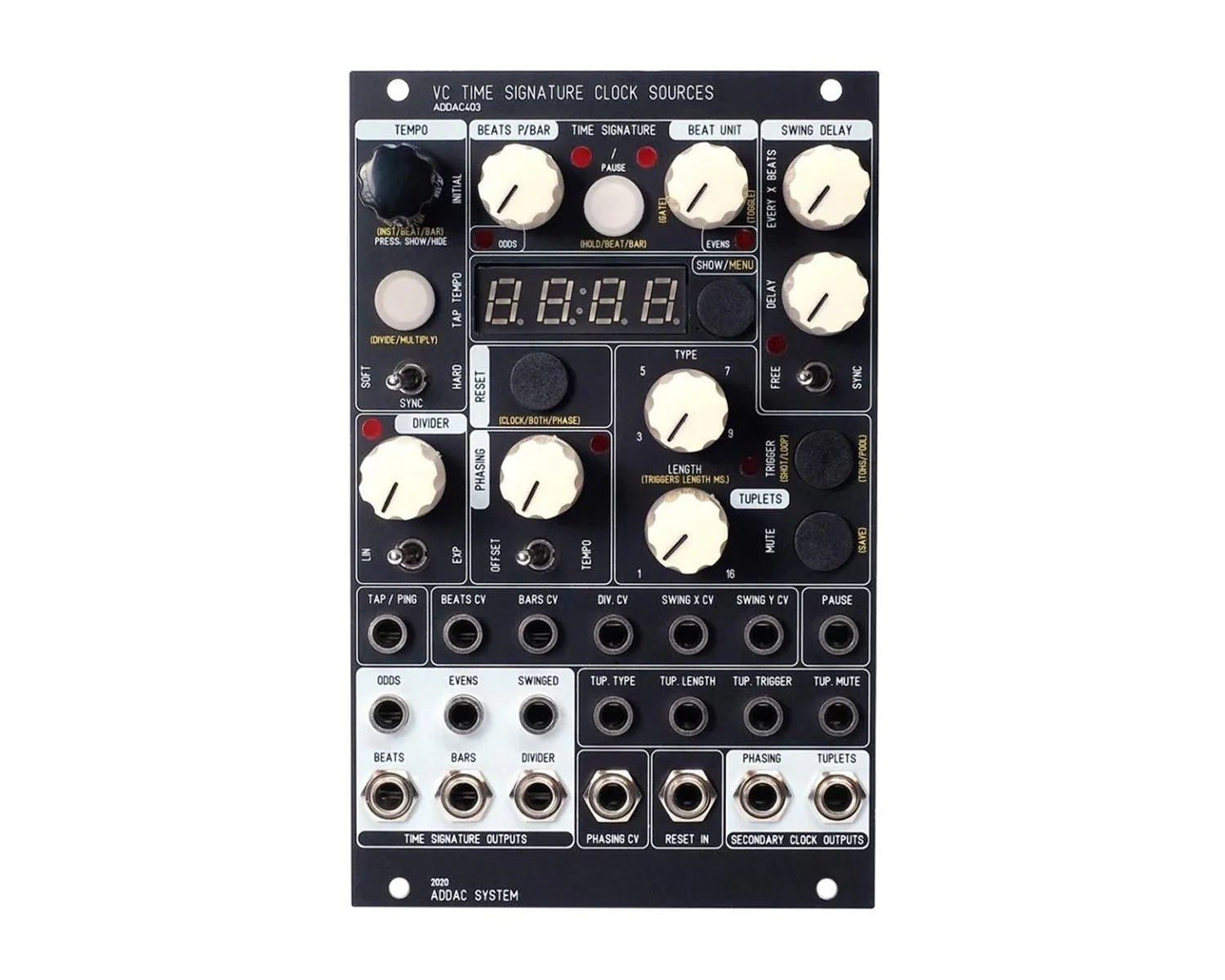

The ADDAC403 VC Time Signature Clock Sources acts as a primary source of synced and syncopated clock signals in your Eurorack system. Its master clock has a BPM range between 0.1 to 250BPM and is incredibly stable. It features manual control, tap tempo, and external sync with soft or hard sync modes. Soft sync sets a new BPM but does not sync to the input clock, while hard sets a new BPM and does sync to the input clock.

• Fully voltage controllable clock source
• Phasing clock that moves in and out of time
• X/Y time signature with beats/bar and bars control
• Divider with linear or exponential scaling
• Tuplets generator with triplets, quintuplets, septuplets, or ninlets with adjustable length
• Swing delay adds skips every X number of beats
• Menu system shows visual representation of parameters with a four-character/seven-segment display
• Pause and reset input
• Hard or soft sync inputs and tap tempo
• All parameters feature CV/trigger inputs except BPM and menu

Video:

Product Specs

• Item Number: 20246
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Portugal
• MPN: ADDAC403
• Modular Grid: Eurorack
• Dimensions*: 16 HP 40 mm deep
• Power*: 140 mA 12V 40 mA -12V ? mA 5V

* User contributed details
